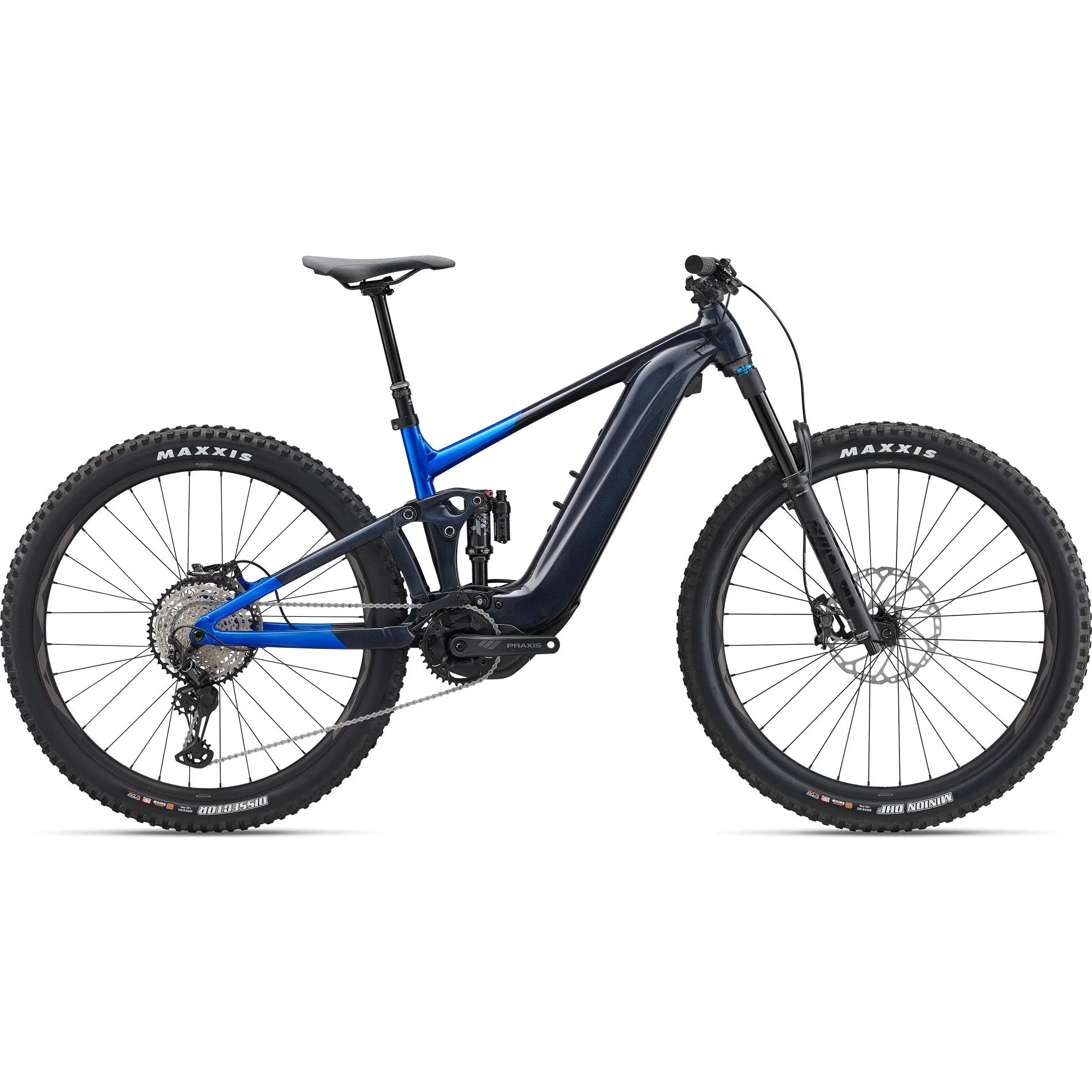

FASTER UP THE CLIMBS, LONGER LOOPS, MORE SINGLETRACK FUN ON ANY GIVEN DAY. FREE YOURSELF TO PUSH YOUR TRAIL RIDING TO THE NEXT LEVEL WITH THIS POWERFUL, FUN AND SMOOTH-RIDING E-BIKE.
KEY PERFORMANCE FACTORS
Smooth, powerful support
SyncDrive Pro motor delivers 85Nm of torque and tunable support ratios up to 400 percent. Smart Assist technology creates smooth pedal assistance that engages instantly when human power is applied, giving you reliable performance on steep climbs and at low speeds.
Trail-riding control
Optimised Maestro suspension for 29-inch wheels with 140mm rear/ 150mm front travel to roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents.
Adaptable to the terrain
Flip chip feature lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.
| Motor | SyncDrive Pro, 85Nm, powered by Yamaha |
| Controller | RideControl Ergo 3, grip integrated |
| Display | RideControl GO, frame integrated LED display ANT Wireless display compatible |
| Battery | EnergyPak Smart 800Wh EnergyPak Plus range extender compatible |
| Charger | EnergyPak 6A smart charger |
| Sizes | Cold Night |
| Colors | Cold Night/Cobalt |
| Frame | ALUXX SL-Grade Aluminium, 140mm Maestro Suspension, flip chip, UDH hanger 12x148mm thru-axle Giant EnergyPak Plus Range Extender Compatible |
| Fork | Fox 36 Float Performance, 150mm travel, 44mm offset, Grip Damper, Boost 110x15QR, e-optimised |
| Shock | Fox Float X Performance, EVOL Large Volume sleeve, 3-Pos Lever, custom tuned |
| Handlebar | Giant Contact TR35, alloy, 35mm |
| Grips | Giant New trail grip Half-waffle/single lock-on |
| Stem | Giant Contact SL 35 |
| Seatpost | TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 525mm XL: 170-200mm travel / 30.9 x 525mm |
| Saddle | Giant Romero Trail |
| Pedals | Platform |
| Shifters | Shimano Deore XT |
| Front Derailleur | MRP HD2 co-moulded chain guide |
| Rear Derailleur | Shimano Deore XT, 12-speed, Shadow |
| Brakes | Shimano Deore XT, BR-M8120, 4-piston, hydraulic disc [F] 220mm, [R] 203mm |
| Brake Levers | Shimano Deore XT, I-spec EV |
| Cassette | Shimano CS-M7100-12, 10-51T, 12-speed |
| Chain | KMC e.12 Turbo, EcoProteq, e-bike optimised |
| Crankset | Praxis Wave 36T Cold Forged 4130 premium steel Praxis e-Cadet custom forged crankarm set (Q-factor=168, S:160, M/L:165, XL:170) |
| Bottom Bracket | N/A |
| Rims | Giant AM 29", Tubeless ready |
| Hubs | Shimano MT410 Boost, Center-Lock |
| Spokes | Sapim E-Lite [R] Race [F], e-bike optimised |
| Tires | Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO , 3C MaxxTerra [F] Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO , 3C MaxxTerra [R] |
| Extras | Tubeless kit (liquid, valves, levers, manual, tool) |
| Lock | Torx 25 Battery Lock with built-in Torque limiter |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
